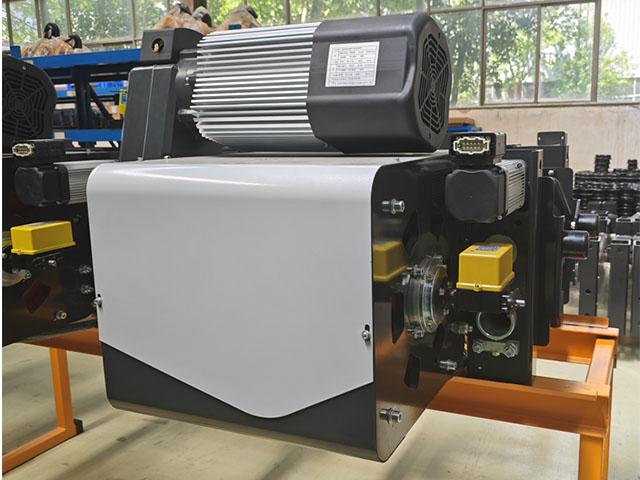

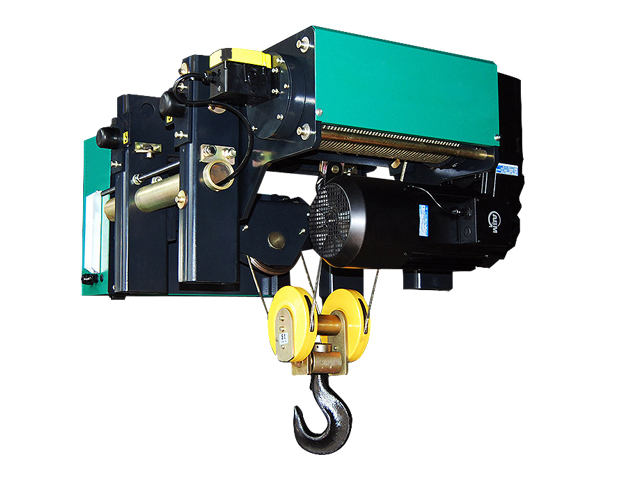

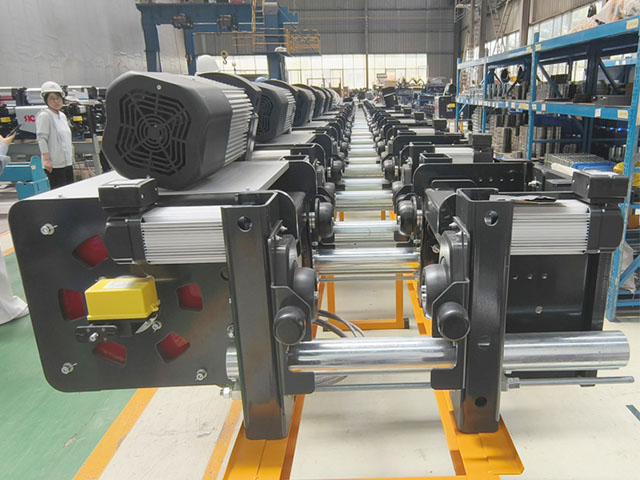

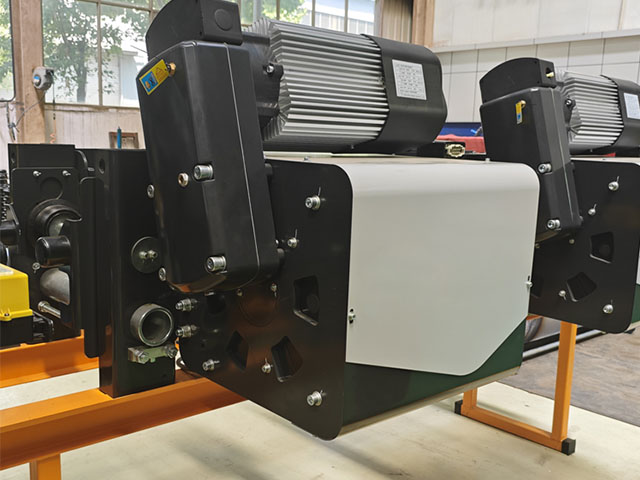

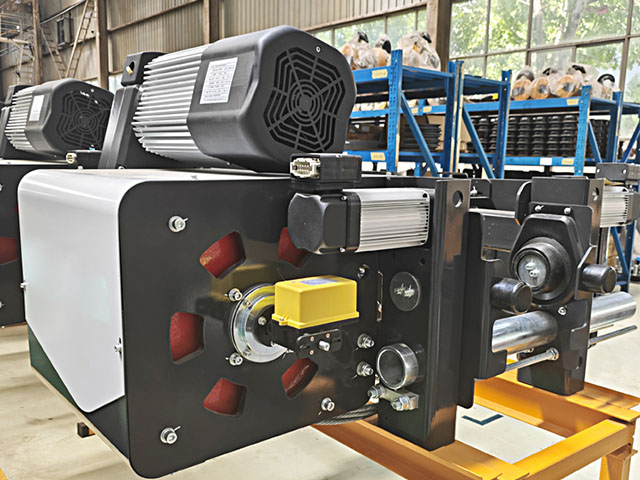

European Electric Hoist

Capacity:0.25-20t
Motor Power:0.1-20kw
Lifting Height:3-30m
Lifting Speed:0.35-8m/min
Travelling Speed:20m/min
Wire Rope Structure:6*9-6*37+1

Product catalog

Product video

send email

Get a quote

Share With:

Product description

European Hoist Advanced Designed Crane For The Low Headroom And High Lifting Height Demands. It Has Many Advantages Such As: Strong Rigidity, Light Dead Weight, Outstanding Structure Design, Long Working Lift Etc. It Could Save Your Factory Space And Investment Effectively.Its Technology Is Advanced And Design Is Based On International Standard: Din (Germany),Fem (Europe), And Iso (International)

The All Motions Of This Overhead Crane Are Double Speeds, The Lifting Motor Is Double Speed Type,The Cross Travelling Motor And Long Travelling Motor Are Controled By Frequency Inverte It Could Be Widely Used To Handle Materials In Many Industries' Workshop And Warehouse,Such As Manufacture Processing, Warehouse, Storage, Paper Mill, Electronics Industries Workshopand Other Material Handling Situation

Product Parameter

Item	Data
Capacity	0.25-20t
Motor power	0.1-20kw
Lifting height	3-30m
Lifting speed	0.35-8m/min
Travelling speed	20m/min
Wire rope structure	69-637+1
Working class	ISOA3-A5/FEM2M-4M
Power source	3phase AC 380V 50HZ or as your demand
Other	According to your specific usage, specific model and design will offer

Schematic Drawing

Features and Advantages

Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself

Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.

Control Method: Room control or remote control to avoid any injure to the operation staff

Main lifting motor: with thermal protection and currency protection.

Hooks with latch

Rubber buffers

Protective earthing

Crane switch and travel end switch

Sub-assemblies characteristic are tested before assemly.

All cranes must be pre-assmebled and tested before leaving factory and offer the certification of test.

product details

manganese steel hook
After hot foring,not easy to break,
lower hook 360℃ rotation

solid shell cover
Solid and light,continuous,
integral sealed structure

lifting drive
The noise pllution during motor
operation is reduced and prolonged

Steel wire rope
Tensile strength up to 2160MPa
antiseptic surface phosphating treatment
