Double girder overhead crane is similar with single girder bridge crane, which includes a trolley, electric appliance, bridge frame, small and large car running mechanism. double girder crane firstly adopts honeybomb beam design, which has light weight, large loading capacity and strong wear resistance. Double girder bridge crane adopts unique steel pin connection, which is not only solid and reliable, but also has short assembly time.
Hengyuan Group is a famous single girder & double girder overhead crane manufacturers in China, and we offer our customers with favorable double girder overhead crane price, unique design and thorough double girder overhead crane specification, which is very thoughtful and considerate. The main difference of single and double girder eot crane lies in the number of main beam, and double beam eot crane has higher loading capacity. Furthermore, we offer double girder overhead crane for sale, such as metallurgy double girder overhead crane, anti-explosion double girder overhead crane, grab double girder overhead crane and so on.
Features and Advantages:
Appearance: compact size, building headroom low light self-weight.
Adapt to the environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
Working temperature: - 25 degrees ~ 40 degrees.
Banned items: banned in inflammable, explosive, corrosive environment in use.
Classification: light and medium.
Operating methods: The ground operation and in the driver's cabin.
The cabin: Open-style and closed style
Note: It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion- proof or insulating working conditions.
High performance components with economical price
Easy maintenance and Easy replacement of components
Low cost of transportation cost and fast installation
Top Quality and super performance with reliability
High Efficiency and best return of the investment
Top quality longtime bearing polyurethane materials buffer
Lifting limit switch and traveling limit switch
Current overload protection system
Voltage lower protection function
Product Parameter:
| Technical Data |
| Lifting Capacity |
T |
3t |
5t |
10t |
16t |
20t |
| Span |
m |
10.5~31.5m |
| Speed |
Lifting |

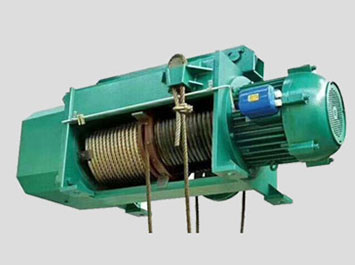

CD1 hoist |
m/min |
8 |
7 |
3.5 |
6 |
| MD1 hoist |
8/0.8 |
7/0.7 |
3.5/0.35 |
6/0.6 |
| Traveling of hoist |
20 |
| Traveling of crane |
20/30 |
| Operational Model |
Cabin; remote control; ground handle |
| Working Duty |
A3 |
| Power Supply |
380V, 50Hz 3phase or on your requst |
Schematic Drawing:
