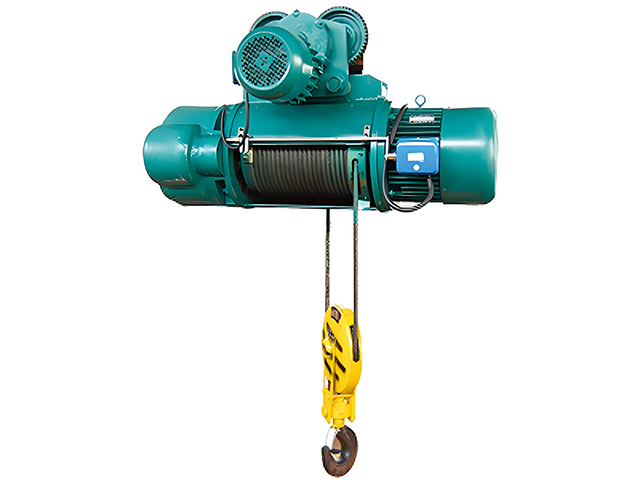

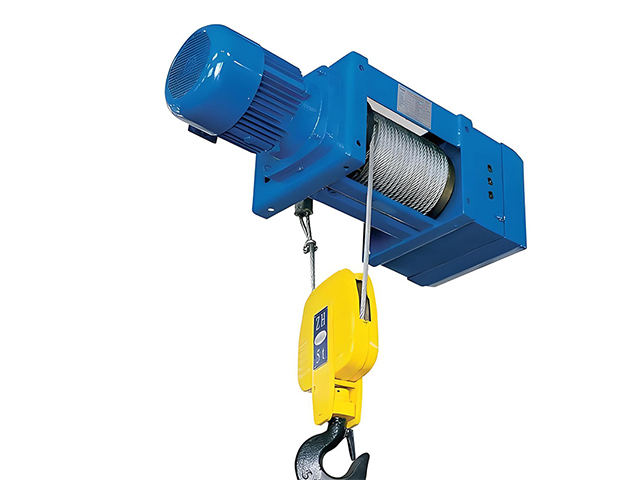

Electric Wire Rope Hoist

Capacity:0.25-20t
Motor power:0.1-20kw
Lifting height:3-30m
Lifting speed:0.35-8m/min
Travelling speed:20m/min
Wire rope structure:6*9-6*37+1

Product catalog

send email

Get a quote

Share With:

Product description

Electric Wire Rope Hoist Has Single Or Double Lifting Speed To Choose, Which Is Cd And Md Type Electric Cable Hoist ,The Lifting Capacity Of Electric Hoist With Remote Control Is From 0.3 To 80 Tons, And The Lifting Height Is From 3 To 30 Meters.

Hengyuan Group Offers Cd And Md Type Electric Hoists. Which Can Be Installed On Single Girder Overhead Crane Or Single Beam Gantry Crane. With Different Design Principles And Using Environments, Which Is Traveling Hoist And Stationary Hoist.

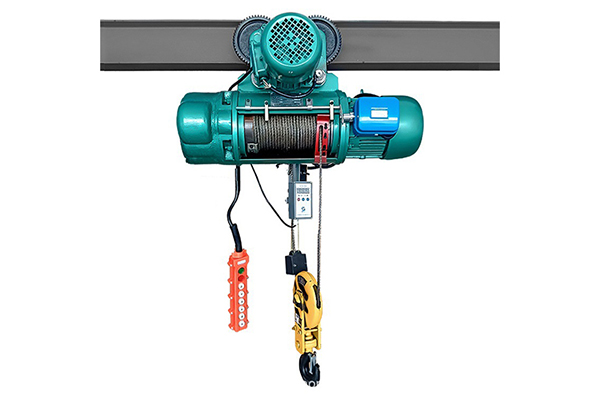

Cd Type Wire Rope Electric Hoist

The Cd Type Wire Rope Electric Hoist Is The Most Basic Type Of Electric Hoist, Consisting Primarily Of A Hook, Wire Rope, Drum, Motor, And Control System.

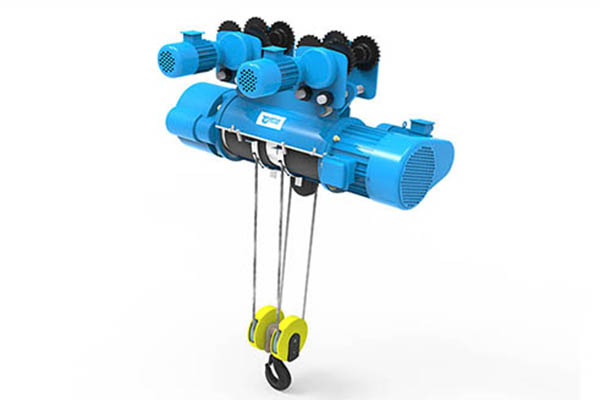

Md Type Electric Wire Rope Hoist

The Two-Speed Electric Wire Rope Hoist (Md Type) Adds A Slow Drive Device Based On The Cd Hoist.

Product Parameter

Lifting capacity(t)	0.25	0.5	1, 2, 3, 5	10	16	20
Lifting height(m)	3, 6, 9	3, 6, 9	6, 9, 12, 18, 24, 30	9, 12, 18, 24, 30	9, 12, 18	9, 12, 18
Lifting speed(m/min)	8(8/0.8)			7(7/0.7)	3.5(3.5/0.35)	4
Travel speed(m/min)	20	20/30			20	20
Work system	Intermediate FC=25%
Power source	Three-phase AC 380V 50Hz

Schematic Drawing

Features and Advantages

Fluent starting and stopping.

Low noise and long lifespan.

Good performance and easy maintenance.

All kinds protective device.

Most convenient lifting device.

product details

MOTOR
The service life can
reach 1 million times
High protection level

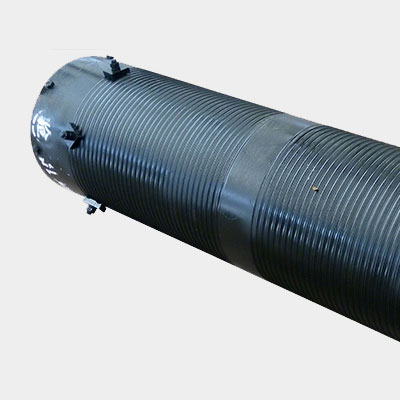

DRUM
Thickened inner tube, detachable
outer tube
FEM compliance

HOOK
T-grade high strength forging,
DIN forging

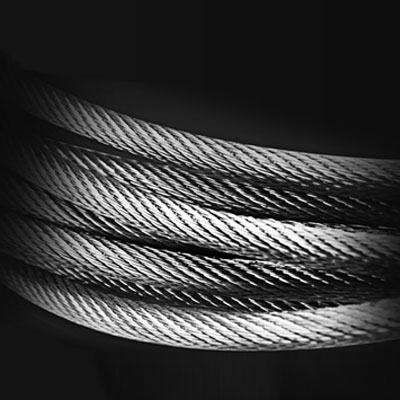

STEELl WIRE ROPE
Tensile strength up to 2160MPa
antiseptic surface
phosphating treatment

LIMIT SWITCH
Limit switch has high precision,
wide adjustment range,
safety and reliability

ELECTRIC CABINET
6V low pressure control,
The operational safety
