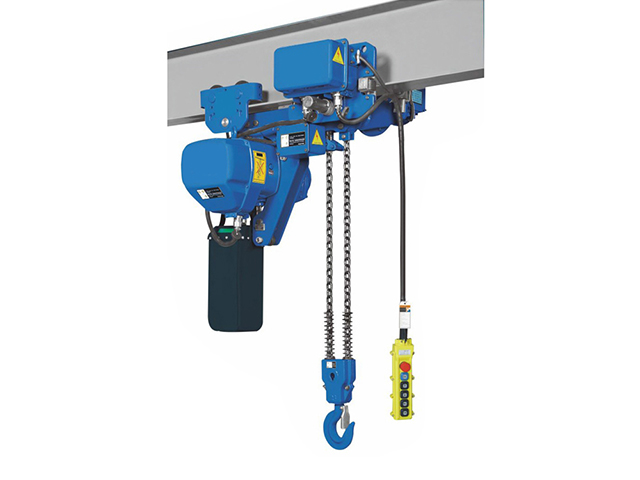

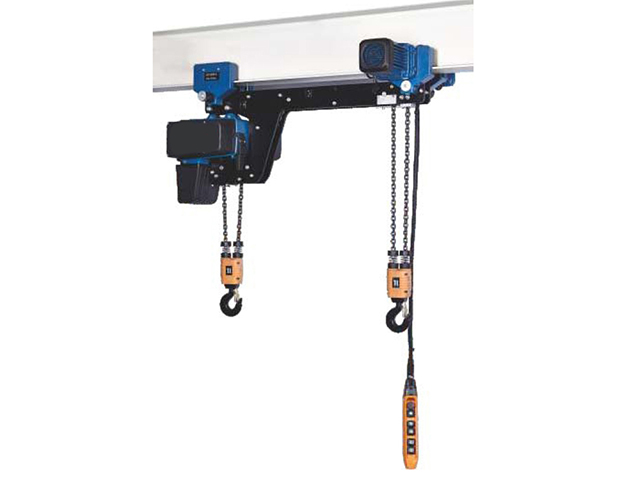

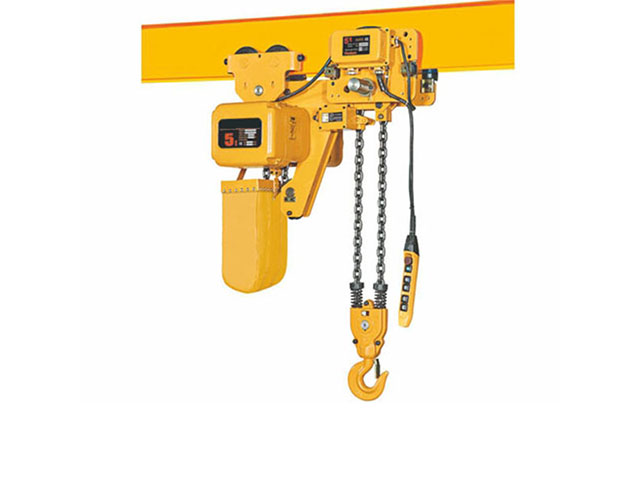

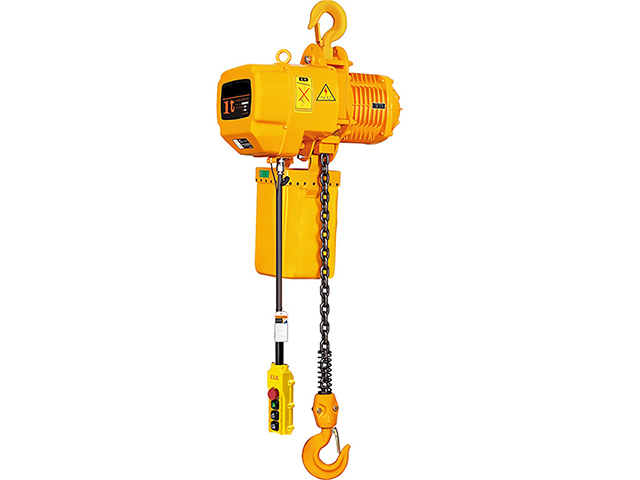

Electric Chain Hoist

Capacity:0.3-35t
Control voltage:DC-36 / 48V
Lifting height:0.3-35m
Lifting speed:0.54~11.8m/min
Power supply:AC-3Phase-220//230380/400/415/440V-50/60Hz
Working class:M3 ~ M7

Product catalog

send email

Get a quote

Share With:

Product Description

The Electric Chain Hoist Features A Mechanism For Winding The Chain, As Well As A Hook To Which You Will Attach The Load That You Need To Lift. Most Of The Time, The Machine Is Easily Portable And Will Feature Clamps That It Will Use To Attach To An Overhead Structure When In Use. It Also Features A Control Panel, Which Is Generally Easy Enough That You Can Use It With A Single Hand. You Can Raise Or Lower The Item You Are Lifting Very Simply, And You Can Do So Slowly So You Don'T Damage It At All.

Product Parameter

ModeL	HSZ-1/2	HSZ-1	HSZ-1 1/2	HSZ-2	HSZ-3	HSZ-5	HSZ-10
Capacity (t)	0.5	1	1.5	2	3	5	20
Standard lifting height (m)	2.5	2.5	2.5	2.5	3	3	3
Test load (t)	0.75	1.5	2.25	3	4.5	7.5	25
Min distance (hook) (mm)	270	270	368	444	486	616	1000
Hsz chain block No. of load chain fall lines	1	1	1	2	2	2	4

Application Places

extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,

installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.

It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

Schematic Drawing

product details

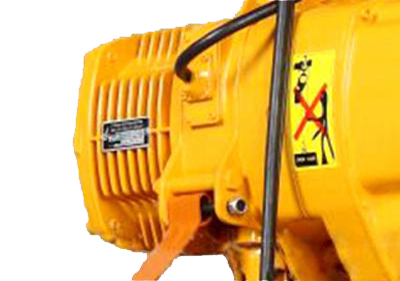

Motor
Super powerful pure copper motor,
high efficiency, fast heat dissipation

Chain
Super heat-treated manganese steel chain

Shell
Die-cast aluminum alloy shell, light and
stable, good sealing

limit switch
Upper and lower limit electrical limit

Aviation plug
Aviation plug, no wiring

Hook
After hot forging, it is not easy to
break, the lower hook can be rotated
360°, and the safety tongue is
attached to ensure safe operation
