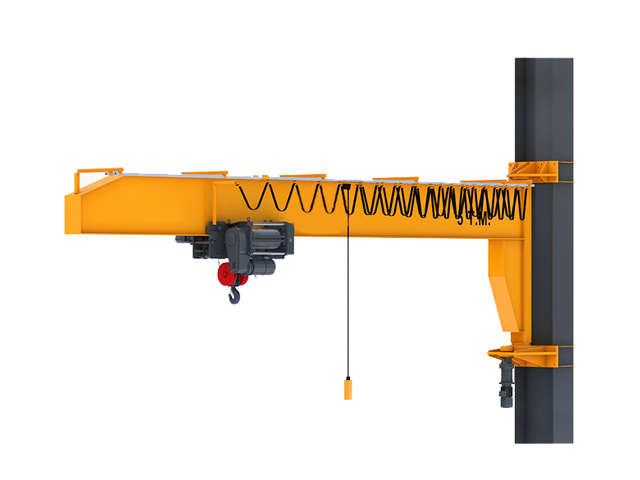

wall mounted jib crane

Capacity:0.25-5t
Slew angle:360°
Lifting height:2-10m
Lifting speed:1.25-10m/min
Travelling speed:14-20m/min
Slewing speed:20m/min

Share With:

Product description

Wall mounted Jib crane is lifting equipment to do light weight transport in plants, port, wharf and etc. sometimes it can beused in manufacturing line and assembling line to do jobs need to be fixed position accurately. You can purchase twotypes of cantilever jibs in Ellsen group. If you want to carry heavy loads under 20 tons, you can choose heavy duty cantilever jib crane. And you can choose cantilever jib crane if you need to transport loads under 5 tons. Both of them are quiet applicable for short distance and busy work.

Jib crane is a small and medium-speed lifting equipment developed recently, It has characteristics of unique structure safe and reliable operation, high-efficiency, energy-saving, effort –saving and flexibility. It can be operated under three dimensional environment. It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades.

Features and Advantages:

Installation with high strength bolt connection;

Convenient in operation,safe and turn to flexible;

Low noise,commodious cabin and good looking;

High quality and efficiency, competitive price;

Reasonable and simple whole structure,Light self-weight, conform to the state standards;

Inexpensive handling systems doesn't require modification of the building structure around.

Product Parameter:

Jib Crane Technical Data
Model			BZ0.5	BZ1	BZ2	BZ3	BZ5
Lift capacity		t	0.5	1	2	3	5
Max. horizontal throw		m	2.6	3.6	2.9-3.9	3.8	3.7
Max. radius of gyration		m	3.6	4.5	4.5	5	5
Max. overturning moment		t/m	3	6	12	18	27
angle of Rotation		degree	180
Lift speed	normal	m/min	8 (4)
slow	m/min	0.8 (0.4)
Travel speed		m/min	20
angle of Rotation speed		m/min	1	0.75	0.7	0.9	0.6

Schematic Drawing:
