semi double gantry crane

Capacity:3-32t
Span:5-20m
Lifting height:6/9m
Lifting speed:8 0.8/8 7 0.7/7m/min
Control voltage:DC-24 / 36V
Motor protection class:IP54 IP55 IP65

send email

chat now

Share With:

Product description

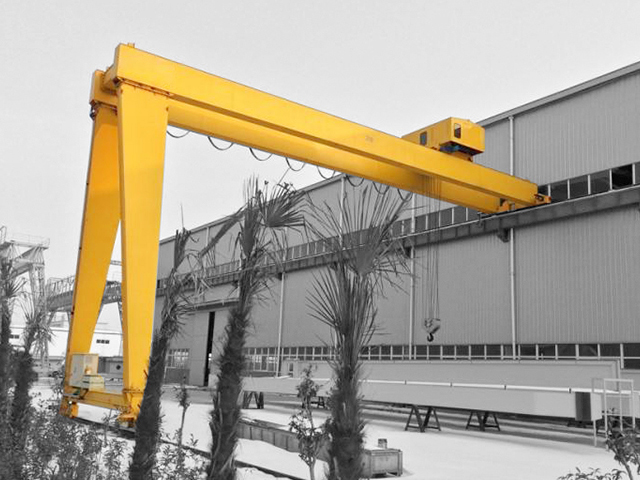

double semi gantry crane is mainly composed by main beam, end beam, supporting legs, hoists and electric parts. Differ from double beam gantry crane, semi portable gantry crane only has one side of supporting legs, and the other side of main beam is placed on the tracks that are set on the workshop, which cab largely utilize space and reduce original costs. The height of MG semi gantry crane can be designed and adjusted with personal working specifications.

double semi gantry Crane is used together with CD, MD model 240v electric hoist. It is a track traveling small and medium sized crane. Its proper lifting capacity is 2 to 10tons, proper span is 10 to 20m, its proper working temperature has wide application. If you are looking for good semi gantry crane manufacturers, Hengyuan Group can be a pretty good choice with low semi gantry crane price and best quality lifting device.

Features and Advantages

Semi gantry crane has lower investment than general gantry crane, which can also utilize resources at most.

Hengyuan semi gantry crane for sale adopts advanced design, which has stable performance and easy operation.

We offer professional purchase guidance, installation direction and one year warranty after purchasing.

Product Parameter

Lifting Capacity (t)		10	16	20/10	32/10	36/16	50/10
Span (m)		18-35
Lifting Height (m)		10-13
Duty Class		A5-A8
Speed (m/min)	Lifting	8.5	7.9	7.2/10.4	7.5/10.4	7.8/10.5	6/10.4
	Trolley	43.8	44.5	44.5	41.9	41.9	38.13
	Crane	40	38	38	40	40	38
Motor	Lifting	YZR180L-6/17	YZR225M-8/26	YZR225M-8/26 YZR200L-6/26	YZR280S-10/42 YZR200L-6/26	YZR280M-10/55 YZR225M-6/34	YZR280M-10/55 YZR200L-6/26
	Trolley	YZR132M1- 6/2.5*2	YZR132M2- 6/4*2	YZR132M2- 6/4*2	YZR132M1- 6/4*2	YZR132M1- 6/6.3*2	YZR132M1- 6/6.3*2
	Crane	YZR160L-6/13*2	YZR160L-6/132 YZR160M1- 6/6.34	YZR160L-6/132 YZR160M2- 6/8.54	YZR160M2- 6/8.5*4	YZR160L-6/134 YZR160M2- 6/8.54	YZR160L-6/13*4
Weight (t)	Trolley	9	9.5	12	16	18	24
	Total	63.2-100	78-106	79-120	95-108	106-155	195
Wheel Pressure (KN)		225-295	255-373	208-289	324-334	314-363	452
Steel Track		43kg/m	50kg/m
Power Source		3-phase A.C 380V 50HZ (As your demand)

Schematic Drawing

product details

Ground beam
walking ground beam is equipped
with running devices at both ends

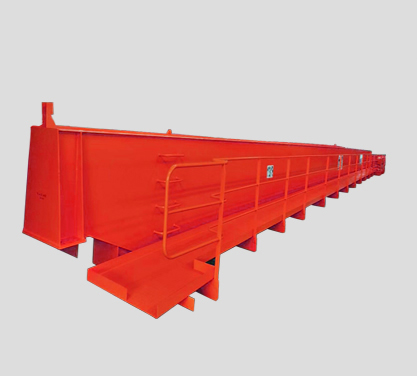

Main beam
with strong box type and standard
camber ,there will have
reinforcement plate inside

Crane trolley
high working duty mechanism
capacity:3-32t
working duty:A3-A5

Crane hook
1.pulley diameter:Φ125/Φ160/
Φ209/Φ304
2.material:hook 35CrMo
3.tonnage:3-32t

Crane cabin
1.cloth and open type
2.air-conditioning provided
3.interlocked circuit breaker provided
