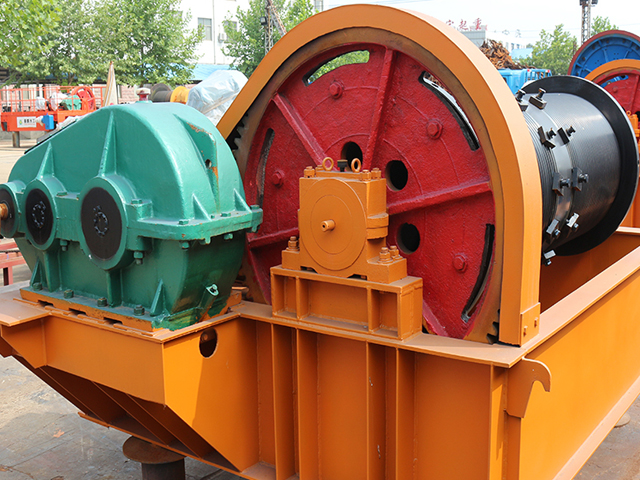

gate hoist winch

Capacity:5-25t
Pulley ratio:2-8m
Lifting height:4-15m
Lifting speed:1.19-5.57m/min
Motor power:2.2-35kw
Points diatance:2-13m

send email

chat now

Share With:

Product description

The gate lifting system is mainly composed by mobile dam gantry crane, fixed winch hoist and hoist, which are special designed for gate lifting at hydro-power station. The dam Gantry Crane are special designed for the gate lifting and cleaning the inlet garbage with the gripping beam or grab. Generally, the mobile dam gantry crane are high-lift and slow speed with double lifting point.

Hengyuan Group is a professional hydropower station winch production manufacturer, and our small electric winch for sale has been exported to many countries with over 30 years accumulation. Welcome to visit us at any time and check our winches if there is any demand in your projects, and a quick and complete will be sent back through E-mail within 24 hours.

Features and Advantages

High Efficiency and Stable performance

Long Life Span: 30-40years.

Convenient operation and high availability.

Weight overload protection device.

Top quality long time bearing polyurethane materials buffer.

Crane traveling limit switch.

Voltage lower protection function.

Emergency shutdown function.

Current overload protection system and so on.

Product Parameter

Hydropower Station Gantry Crane
Lifting Capacity	T	KN630
Spanm	M	4.5
Lifting Heightm	M	28
Service Class		Q3-middle
SpeedHoisting	m/min	1.57
Crane Travelling	m/min	19.4
Total Power	kw	64
Steel Track Recommended		Qu80
Max. Wheel Load	KN	577
Power Service	3-Phase A.C.50HZ 380V

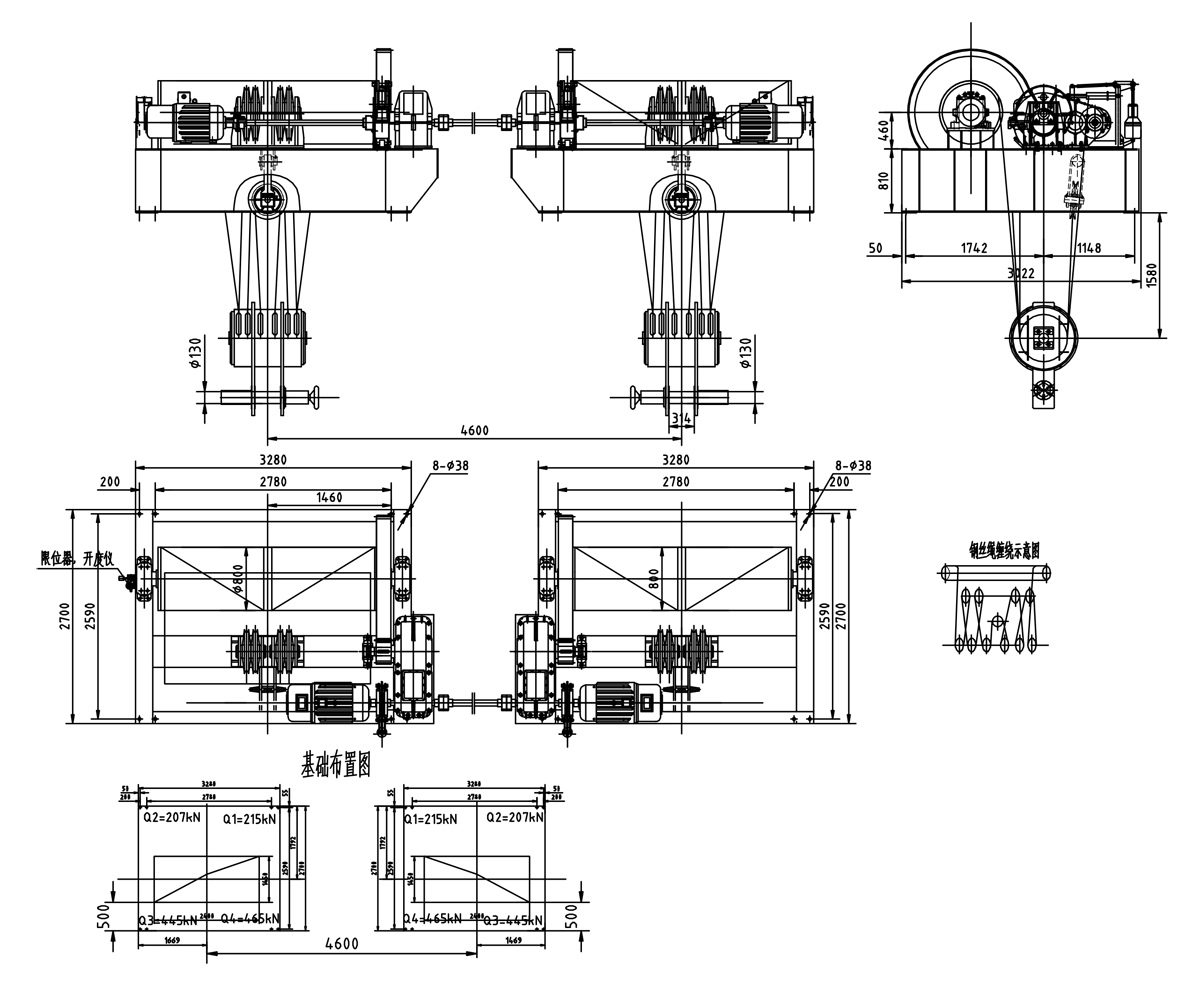

Schematic Drawing

product details

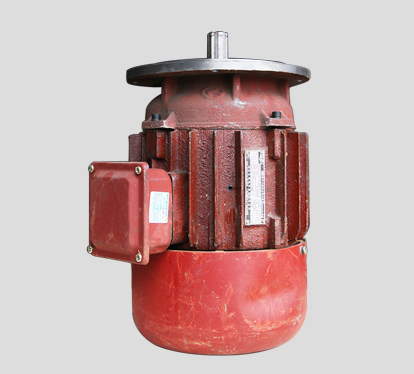

Motor
Sufficient solid copper motor
The service life can reach
1 million times High protection
level ,Support double speed

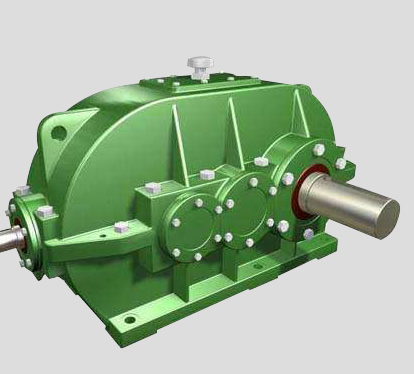

Reducer
Precision casting, protect
internal parts, higher work
efficiency

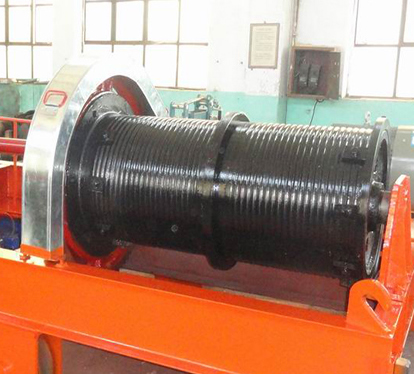

Drum
Forged with high-quality alloy
steel material, special thickened
steel wire rope drum, greater
load-bearing capacity and
safer use

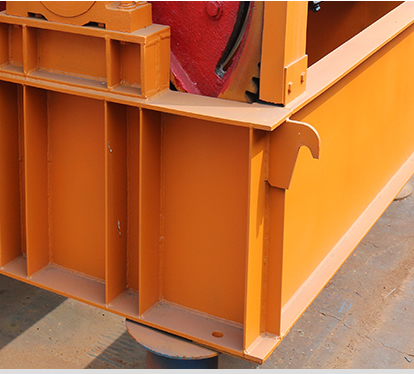

Channel steel base
The base is thickened and
reinforced, work more stably,
safe and stable, and solve
the trouble of shaking
